Hitch Mounted

This configuration is ideal for teams that need to move quickly between sites while minimizing setup time, crew size, and lane closures.

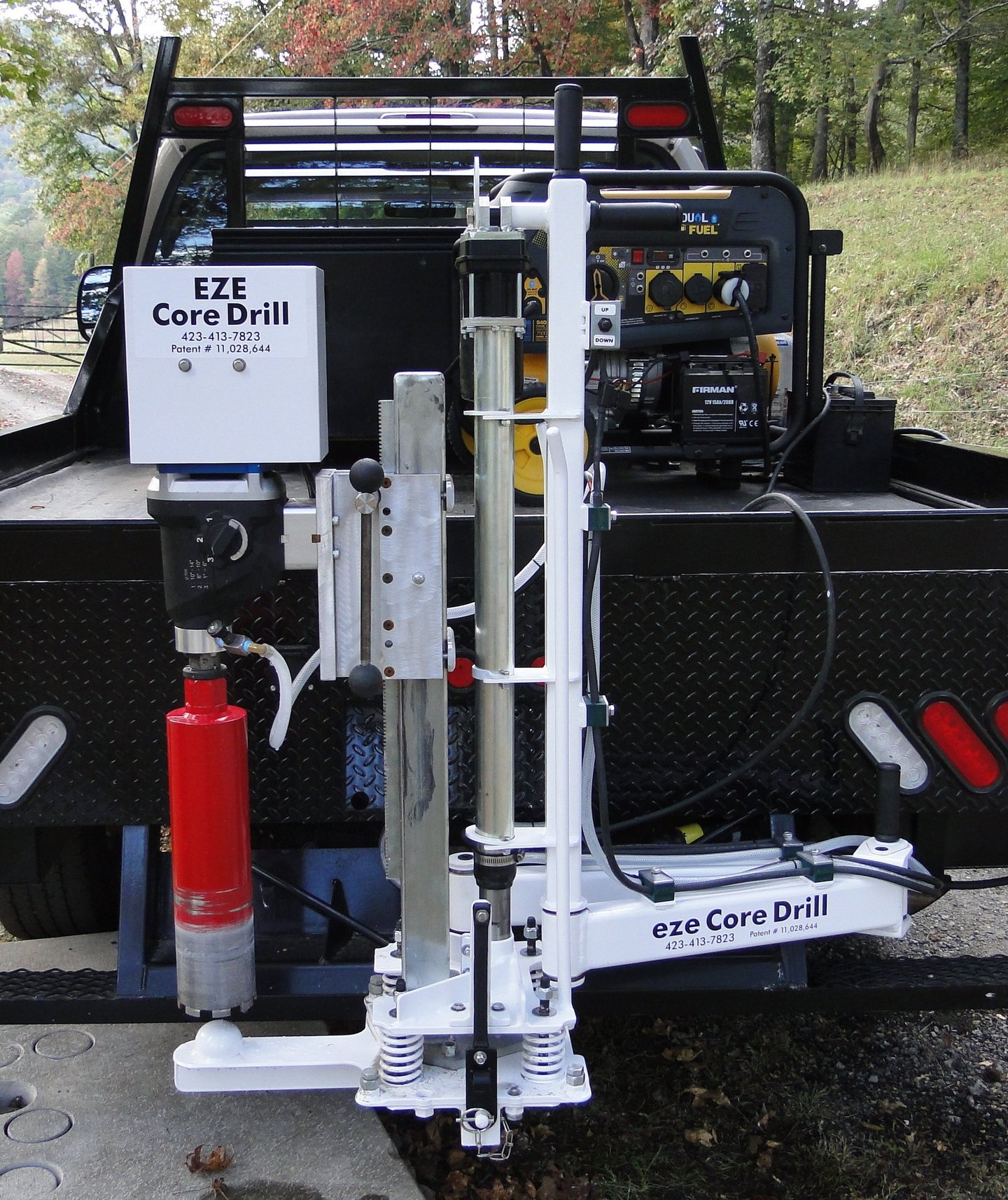

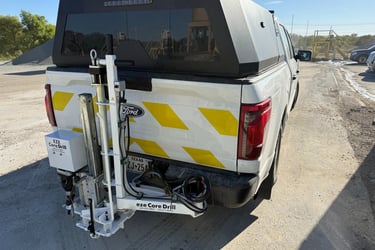

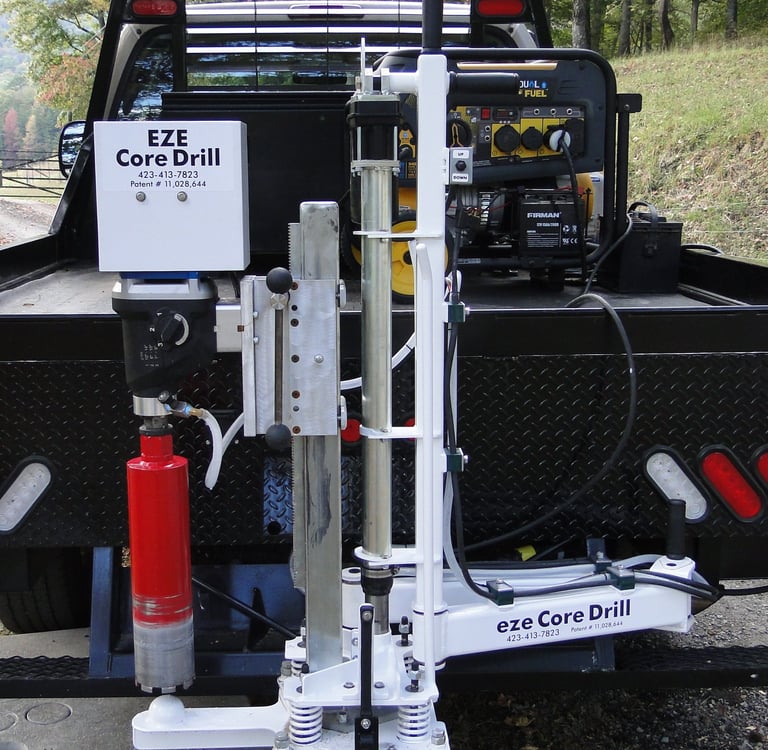

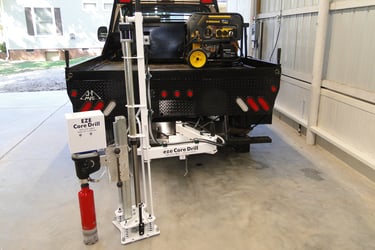

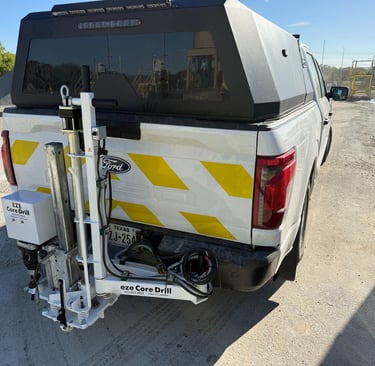

The Hitch Mounted is a patented pavement coring system designed for maximum mobility, fast deployment, and safe single-operator use. Mounting directly to a standard 2” receiver hitch, the system uses vehicle-weighted hydraulic down-pressure to provide a stable, ergonomic coring solution without permanent vehicle modifications.

Overview

Key Benefits

Patented hitch-mounted design engineered specifically for pavement coring
Fast setup and removal with no permanent vehicle installation
Reduced crew requirements with ergonomic, single-operator operation
Vehicle-weighted hydraulic down-pressure for stability and consistent cores
Compact and transport-friendly for rapid mobilization

Typical Applications

DOT and municipal pavement testing
Highway and interstate core sampling
Asphalt and paving contractor QA/QC
Utility cut verification
Roadway rehabilitation investigations

Specifications

A secure Reese hitch mounting system.
A rugged articulating boom arm with 5 feet of reach.
180 degree of horizontal travel.
A 12VDC powered vertical lift system for raising or lowering a core drill mask and drill from a stored position to a drilling position.
A self leveling system for securing the core drill on to the surface to be drilled in a perpendicular orientation to the drilling surface.
A powerful securing system for insuring that the core drill will not move horizontally during the drilling process.

A water lubrication supply line for transporting water to the core drill.
A user friendly system for moving the Core Drill from a stored position to a drilling position and back again.
A secure system for latching the core drill to the Reese Hitch system during transport including safety chains.
A white reflective powder coat paint.
The Eze Core Drill Boom Arm System can operate an electric powered drill motor OR a hydraulic powered drill motor.
WARRANTY: 1 year on parts
