Trailer Mounted

It’s ideal for agencies and contractors that frequently change locations or operate in traffic-sensitive environments.

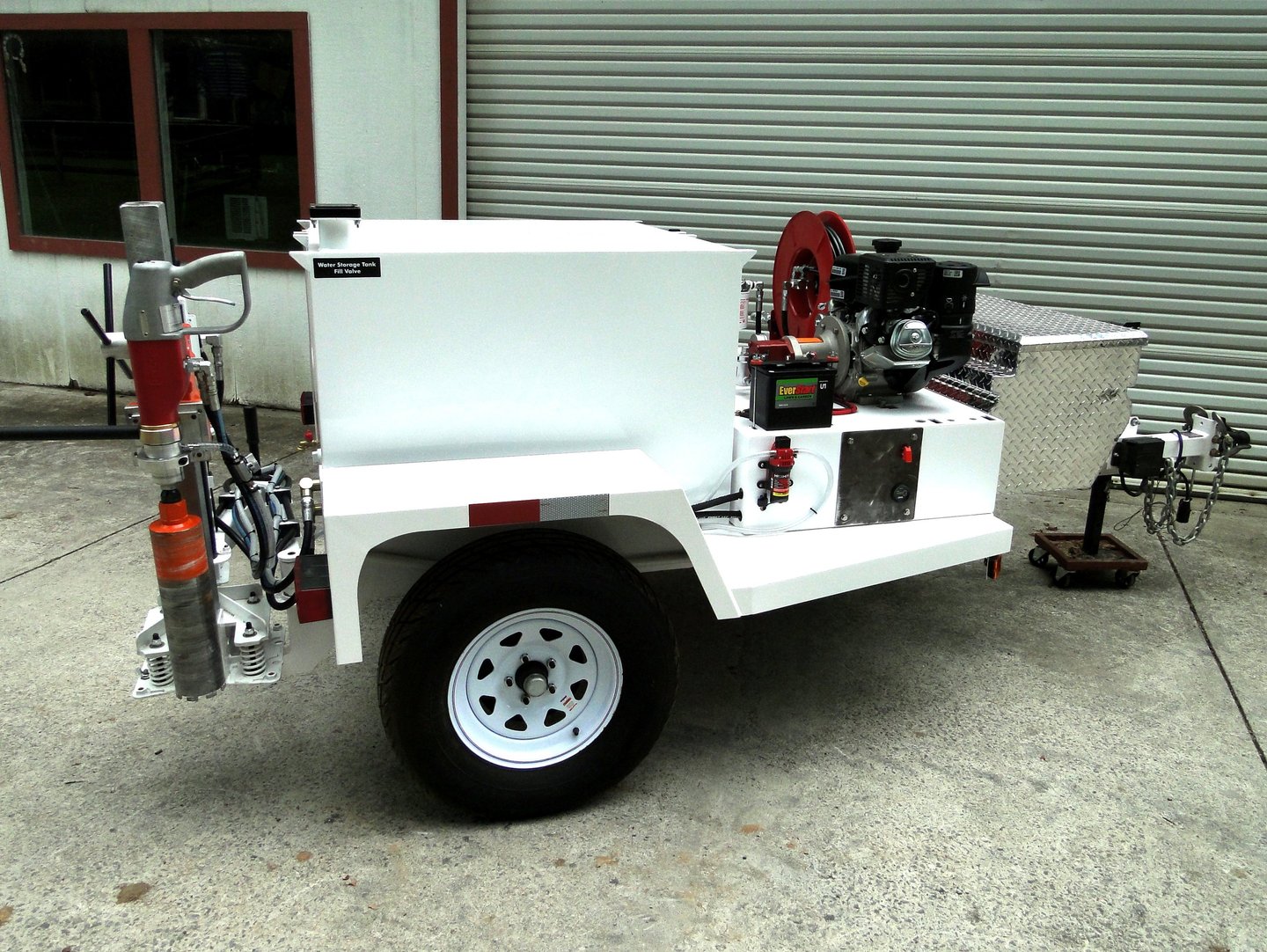

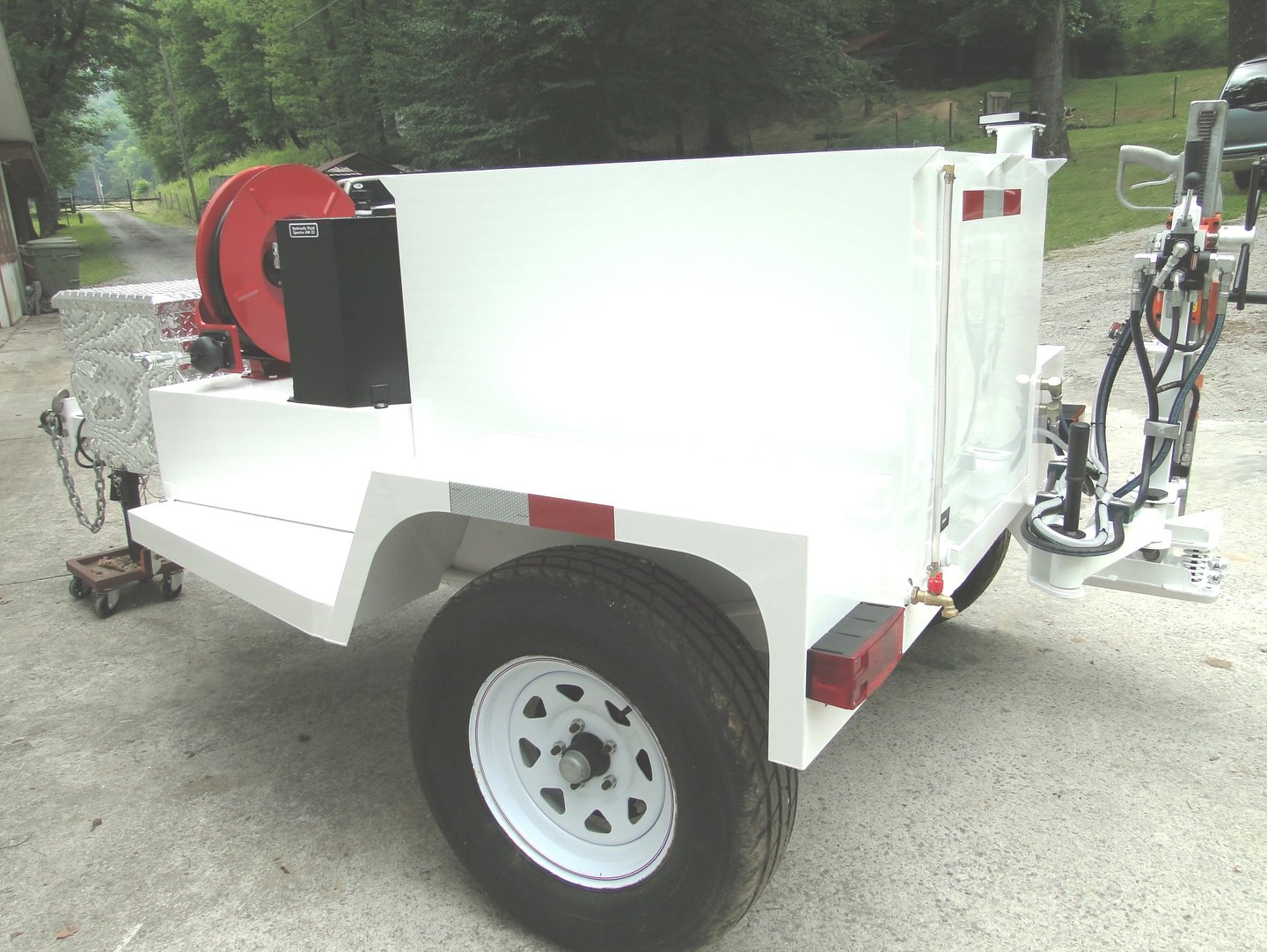

The Trailer-Attached Eze-Core Drill delivers the same patented coring performance as the hitch-mounted system, packaged into a fully self-contained, high-capacity platform. Designed for extended operations and higher-volume coring, this configuration integrates power, water, and storage into a single, jobsite-ready solution.

It’s the ideal choice for dedicated coring crews and long-duration projects where efficiency and autonomy are critical.

Overview

Key Benefits

All-in-one coring platform with integrated components
Patented Eze-Core drilling system built into a dedicated trailer
Higher water and power capacity for extended operations
Improved organization and transport with onboard storage
Consistent performance across multiple cores and sites

Typical Applications

Large DOT and municipal testing programs
High-volume asphalt and paving projects
Airport runways and taxiways
Engineering and materials testing firms
Long-duration roadway investigations

Specifications

An Eze Core Drill Boom Arm System mounted on a 6 ft. X 6 ft. trailer with a 3,500 pound torsion axle and DOT lights.
A 200 gallon water storage tank and 12VDC 1.5 GPM drill water pump.
A 14HP Kohler Engine and Hydraulic pump system for powering a concrete drill OR a 120VAC / 220VAC generator power system for powering a concrete drill
An aluminum tool storage box additional options are available storing: DOT road signs, DOT sign post, fasteners, ladders, powered hand tools, post drivers, post pullers, ect.
A rugged articulating boom arm with 5 feet of reach.
180 degree of horizontal travel.
A 12VDC powered vertical lift system for raising or lowering a core drill mask and drill from a stored position to a drilling position.

A self leveling system for securing the core drill on to the surface to be drilled in a perpendicular orientation to the drilling surface.
A powerful securing system for insuring that the core drill will not move horizontally during the drilling process.
A water lubrication supply line for transporting water to the core drill.
A user friendly system for moving the Core Drill from a stored position to a drilling position and back again.
A secure system for latching the core drill to the Reese Hitch system during transport including safety chains.
A white reflective powder coat paint.
The Eze Core Drill Boom Arm System can operate an electric powered drill motor OR a hydraulic powered drill motor.
WARRANTY: 1 year on parts
